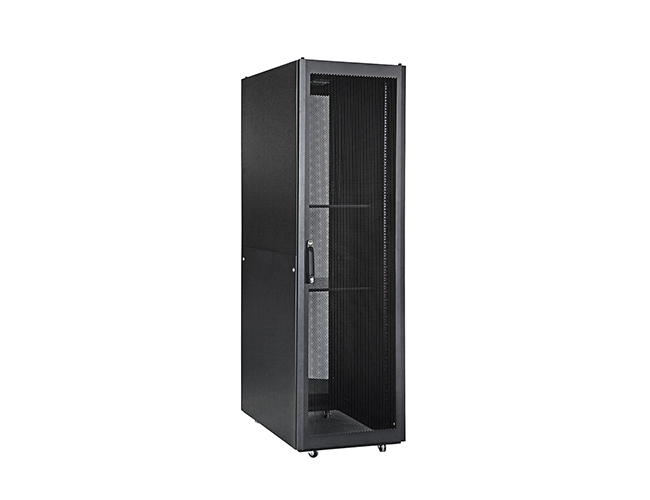

MKD Cabinets

Application

♦ ANSI/EIA RE-310-D

♦ IEC60297-2

♦ DIN41494:PART1

♦ DIN41494:PART7

♦ GB/T3047.2-92:ETSI

Product Description

♦ 16 folded steel frame,more stable

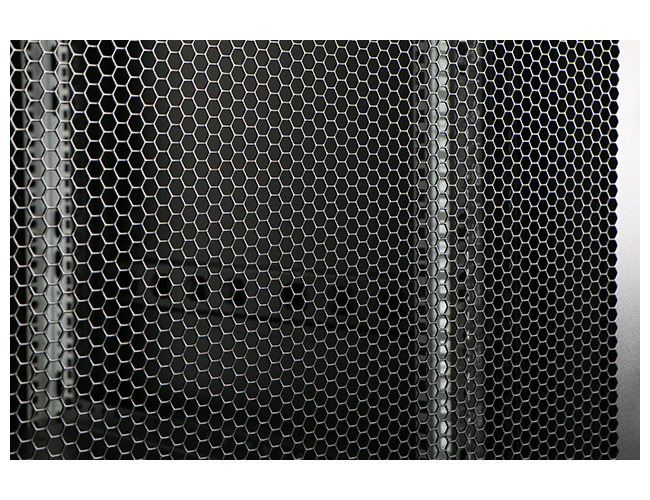

♦ Hexagonal reticular high density vented arc front door

♦ Hexagonal reticular high density vented plate rear door Double-section optional

♦ High static loading capacity 1600KG

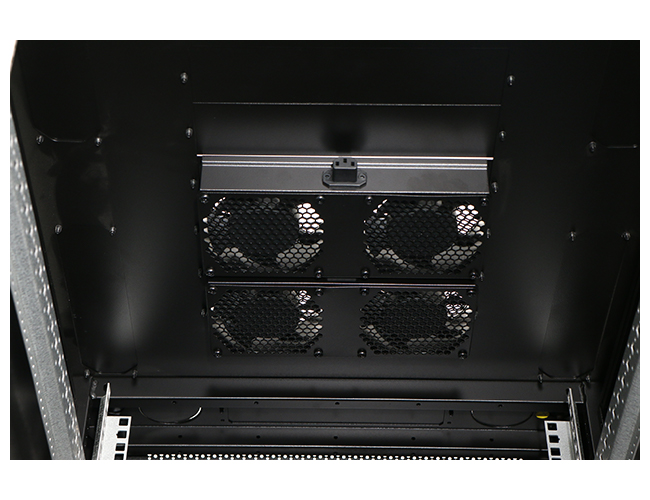

♦ Air conditioning components can be easily installed

♦ Larger internal space,easy combination

♦ The front and back doors are interchangeable

♦ Comply with UL ROHS certifications

Cable Construction

Model No.

Description

MKD.■■■■.9600

Hexagonal reticular high density vented  arc frond door,Double-section Hexagonal reticular high density vented  plate rear door,Gray

MKD.■■■■.9601

Hexagonal reticular high density vented  arc frond door,Double-section Hexagonal reticular high density vented  plate rear door,Black

MKD.■■■■.9800

Hexagonal reticular high density vented  arc frond door,Hexagonal reticular high density vented  plate rear door,Gray

MKD.■■■■.9801

Hexagonal reticular high density vented  arc frond door,Hexagonal reticular high density vented  plate rear door,Black

Remarks:■■■■ First ■denotes width,second■denotes depth,third & fourth■denotes capacity.

Mk Series Cabinets Specification Parameters.pdf

Mk Series Cabinets Standard Configuration.pdf


electrical characteristics

Materials

SPCC cold rolled steel

Structure

Disassembly/Welded frame

Front door

Vented plate door

Rear door

Vented plate door

Ventilation rate

>80%

Side panels

Removable side panels

Thickness(mm)

Mounting profile 2.0,Mounting angle/Column1.5,Others:1.2

Static loading capacity(KG)

1600

Surface finish

Degreasing Silanization Electrostatic spray

Degree of Protection

IP20
