MS3 Cabinets

♦ ANSI/EIA RE-310-D

♦ IEC60297-2

♦ DIN41494:PART1

♦ DIN41494:PART7

♦ GB/T3047.2-92:ETSI

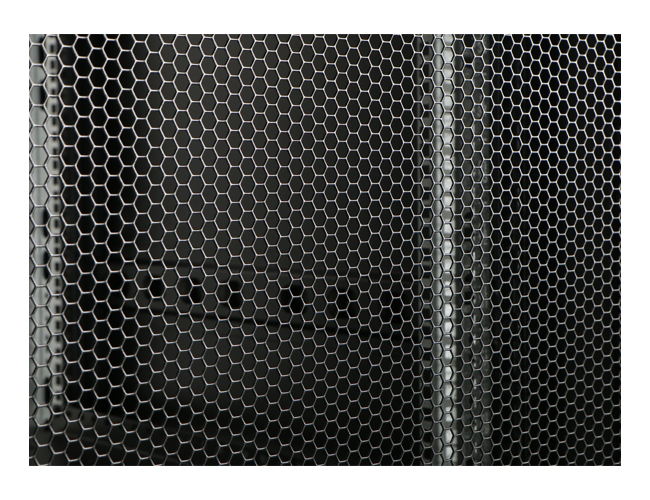

♦ Hexagonal reticular high density vented plate door

♦ Hexagonal reticular high density vented plate door Double-section optional

♦ safety lock

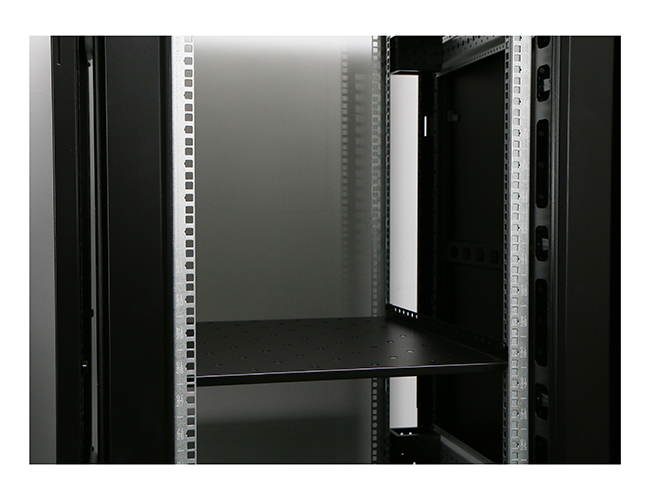

♦ Mounting profiles with laser U-mark

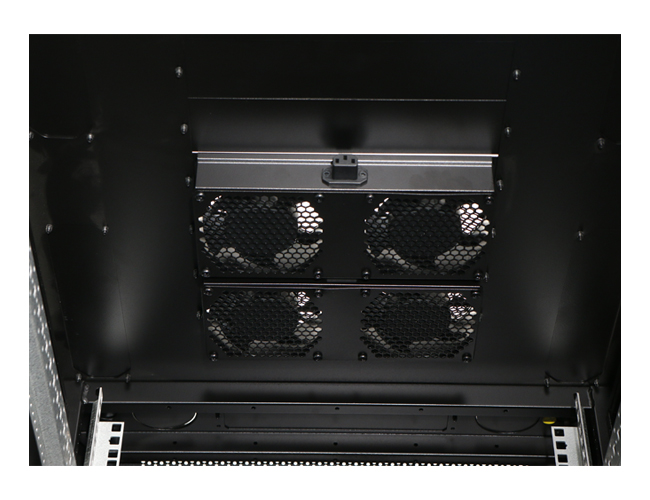

♦ Optional Fan unit easy installation

♦ High ventilation rate＞80%

♦ High static loading capacity 1000KG

♦ Comply with UL ROHS certifications

Model No.	Description
MS3.■■■■.9800	Hexagonal reticular high density vented plate frond & real door，Gray
MS3.■■■■.9801	Hexagonal reticular high density vented plate frond & real door，Black
MS3.■■■■.9600	Hexagonal reticular high density vented plate frond door， Double-section vented plate rear door，Gray
MS3.■■■■.9601	Hexagonal reticular high density vented plate frond door， Double-section vented plate rear door，Black

Remarks：■■■■ First■denotes width，second■denotes depth，third & fourth■denotes capacity.

Materials	SPCC cold rolled steel
Frame	Disassembly
Front door	Vented plate door
Rear door	Vented plate door
Turning degree	＞180°
Side panels	Removable side panels
Thickness（mm）	Mounting profile 2.0，Mounting angle 1.5，Others:1.2
Static loading capacity（KG）	1000
Surface finish	Degreasing SilanizationElectrostatic spray
Degree of Protection	IP20
