Cixi Yonglian Electronics Co., Ltd.

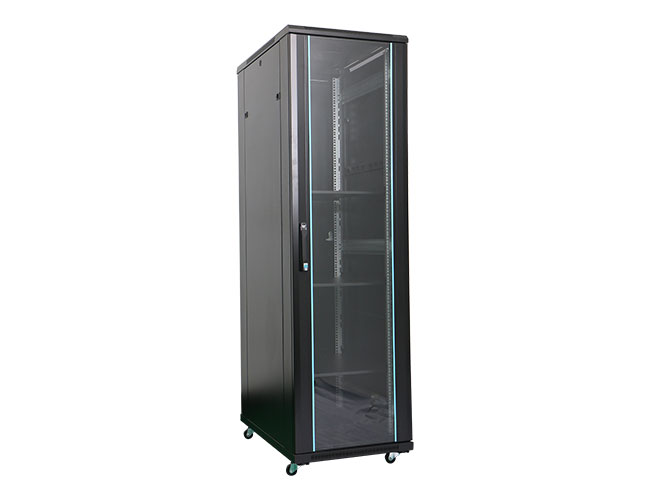

MS2 Cabinets

♦ ANSI/EIA RE-310-D

♦ IEC60297-2

♦ DIN41494:PART1

♦ DIN41494:PART7

♦ GB/T3047.2-92:ETSI

♦ Toughened glass door

♦ Plate steel real door/plate vented rear door/Optional double-section rear door

♦ safety lock

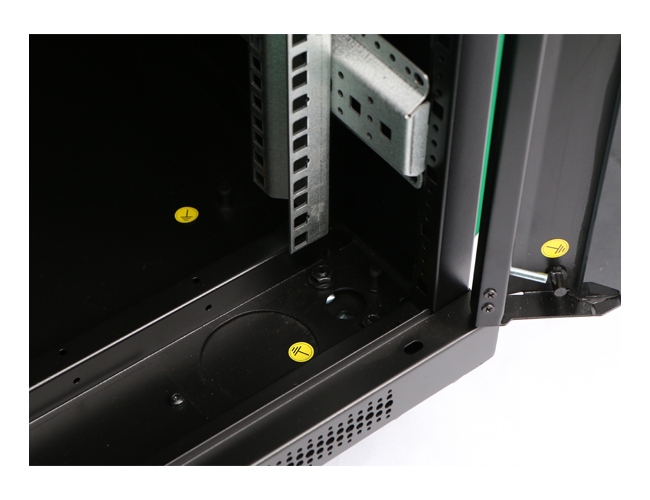

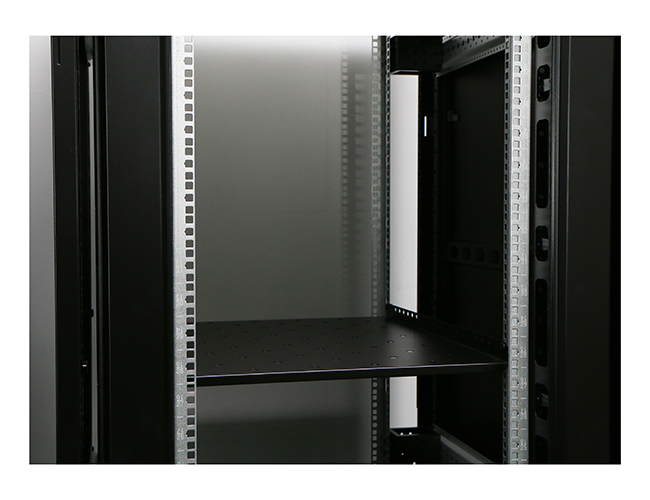

♦ Mounting profiles with laser U-mark

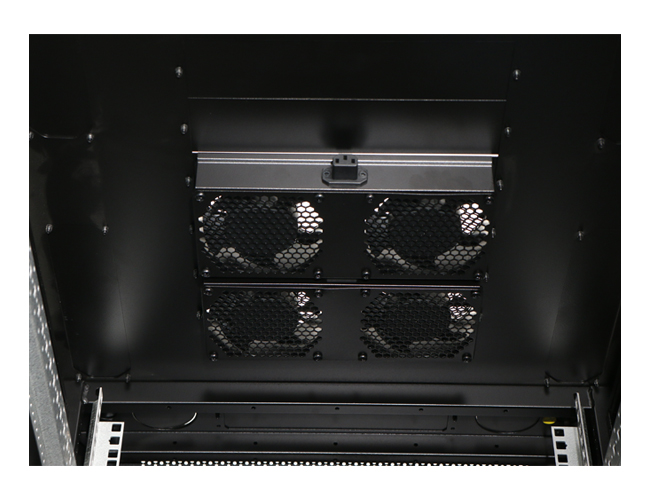

♦ Optional Fan unit easy installation

♦ High static loading capacity 1000KG

♦ Comply with UL ROHS certifications

Model No.	Description
MS2.■■■■.900■	Toughened glass door blue ornament strip Plate steel rear door
MS2.■■■■.930■	Toughened glass door blue ornament strip Double-section plate steel rear door
MS2.■■■■.980■	Toughened glass door blue ornament strip Plate vented rear door
MS2.■■■■.960■	Toughened glass door blue ornament strip Double-section plate vented rear door

Remarks：■■■■ First■denotes width，second■denotes depth，third & fourth■denotes capacity;

9000 denotes Gray(RAL7035)，9001 denotes Black(RAL9004).

Materials	SPCC cold rolled steel
Frame	Disassembly
Front door	5mm Toughened glass door
Rear door	Plate steel door/ Vented plate door
Turning degree	＞180°
Side panels	Removable side panels
Thickness（mm）	Mounting profile 2.0，Mounting angle 1.5，Others:1.2
Static loading capacity（KG）	1000
Surface finish	Degreasing SilanizationElectrostatic spray
Degree of Protection	IP20
