MW/MP Wall-mounted cabinets

♦ANSI/EIA RE-310-D

♦ IEC60297-2

♦ DIN41494:PART1

♦ DIN41494:PART7

♦ Removable side panels，easy to install maintain

♦ Optional Metal cable management

♦ Adjustable depth of installation

♦ Comply with UL ROHS certifications

Model No.	Description

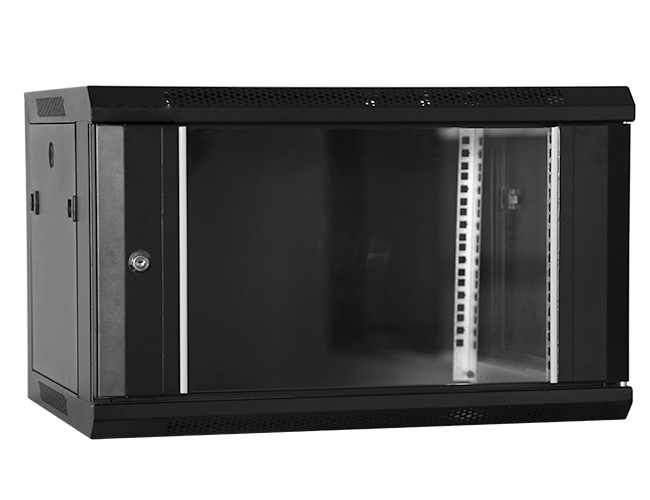

MW/MP.6■■■.90■■	Toughened glass front door，door border without holes，small round lock
MW/MP.6■■■.91■■	Toughened glass front door，with round hole vented arc door border，small round lock

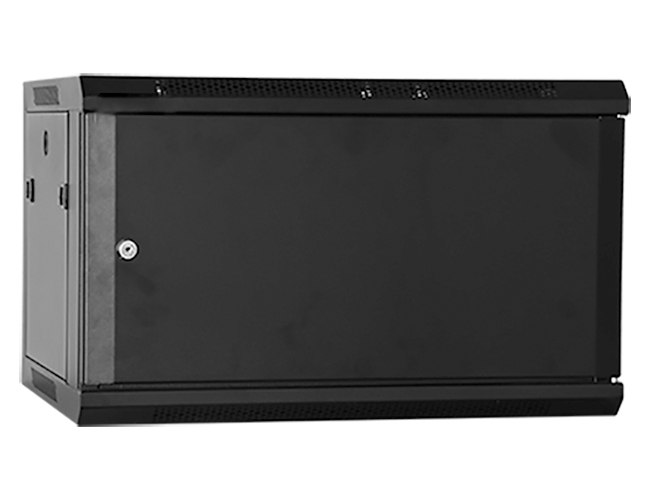

MW/MP.6■■■.92■■	Plate steel door，small round lock

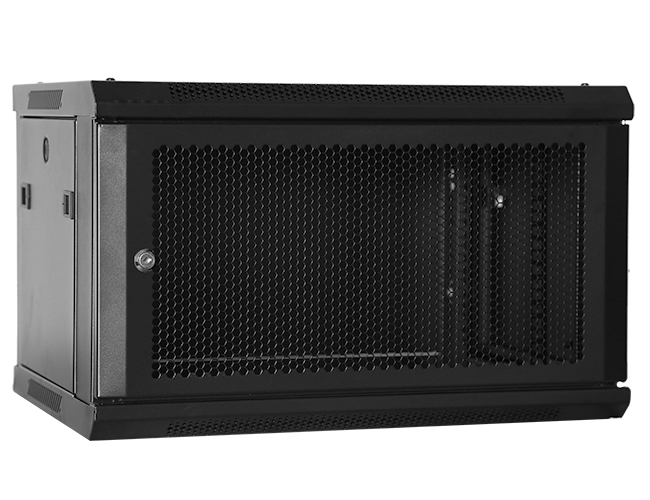

MW/MP.6■■■.93■■	Hexagonal reticular high density vented plate door，small round lock

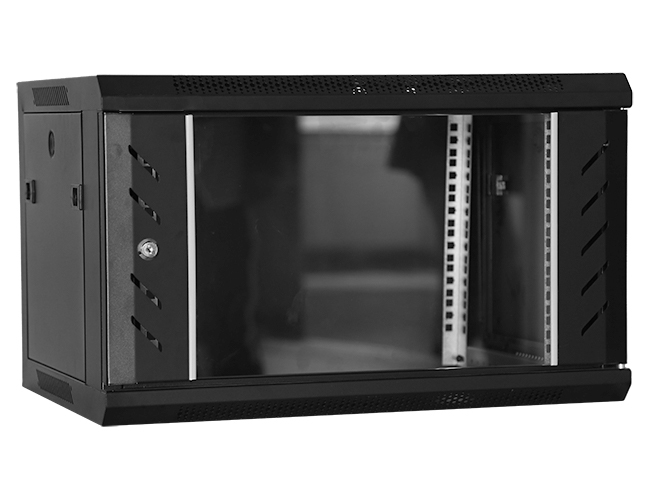

MW/MP.6■■■.94■■	Toughened glass front door，with slanted slot door border，small round lock

Remarks：First■denotes depth，second & third ■■denotes capacity;fourth & fifth■■“00”denotes
Gray(RAL7035)，“01”denotes Black(RAL9004).

Materials	SPCC cold rolled steel
Structure	Welded frame
Thickness（mm）	Mounting profile 2.0，others 1.2
Static loading capacity（KG）	70
Surface finish	Degreasing SilanizationElectrostatic spray
Lock	Small round lock
