Cixi Yonglian Electronics Co., Ltd.

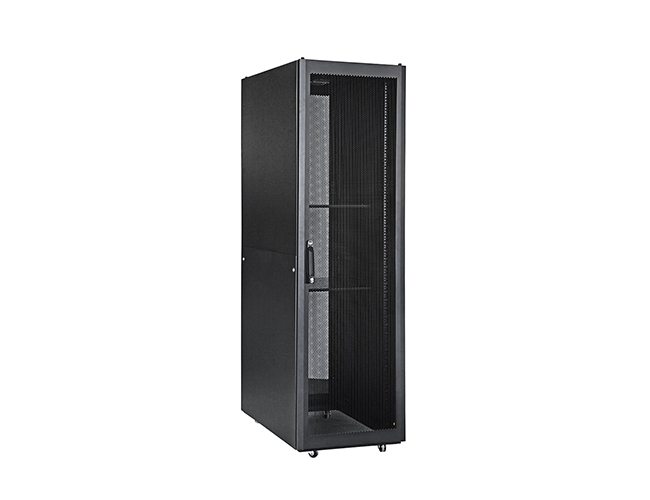

MK3 Cabinets

♦ ANSI/EIA RE-310-D

♦ IEC60297-2

♦ DIN41494:PART1

♦ DIN41494:PART7

♦ GB/T3047.2-92:ETSI

♦ 16 folded steel frame，more stable

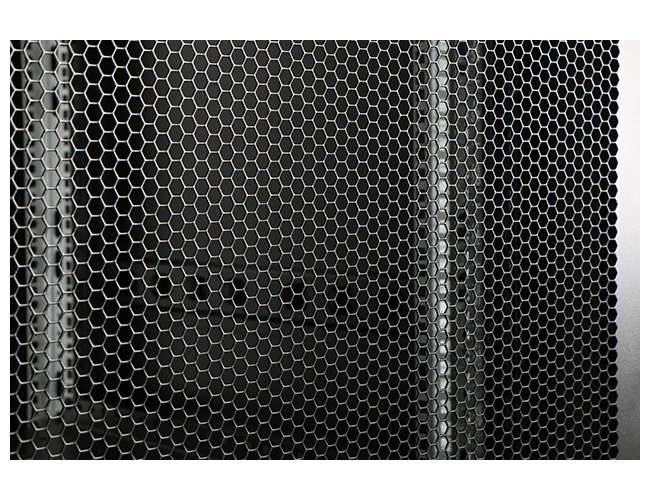

♦ Hexagonal reticular high density vented plate front door

♦ Hexagonal reticular high density vented plate rear door Double-section optional

♦ High static loading capacity 1600KG

♦ Air conditioning components can be easily installed

♦ Larger internal space，easy combination

♦ The front and back doors are interchangeable

♦ Comply with UL ROHS certifications

Model No.	Description
MK3.■■■■.9600	Hexagonal reticular high density vented plate frond door，Double-section Hexagonal reticular high density vented plate rear door，Gray
MK3.■■■■.9601	Hexagonal reticular high density vented plate frond door，Double-section Hexagonal reticular high density vented plate rear door，Black
MK3.■■■■.9800	Hexagonal reticular high density vented plate frond door，Hexagonal reticular high density vented plate rear door，Gray
MK3.■■■■.9801	Hexagonal reticular high density vented plate frond door，Hexagonal reticular high density vented plate rear door，Black

Remarks：■■■■ First ■denotes width，second■denotes depth，third & fourth■denotes capacity.

Materials	SPCC cold rolled steel
Structure	Disassembly/Welded frame
Front door	Vented plate door
Rear door	Vented plate door
Ventilation rate	＞80%
Side panels	Removable side panels
Thickness（mm）	Mounting profile 2.0，Mounting angle/Column1.5，Others:1.2
Static loading capacity（KG）	1600
Surface finish	Degreasing Silanization Electrostatic spray
Degree of Protection	IP20
